Post-Deployment: Identity & SSO (OIDC)

VCF 9.1 lab series. Reviewed and rebuilt from the 9.0.2 Identity & SSO guide. In 9.0.2 the identity broker bound directly to Active Directory over LDAPS; in this 9.1 lab the broker federates to authentik (auth.pgnet.io) over Generic OIDC instead.

📘 Official documentation. This is a lab walkthrough, not a replacement for the vendor docs. For the authoritative, supported procedure, follow Broadcom’s Configuring VCF SSO and Identity Providers (VCF 9.1). Where this guide and the official docs differ, the official docs win.

Pre-requisite: authentik must be reachable at auth.pgnet.io, its certificate must chain to the pgnet CA (see Post-Deployment: Certificates), and the Windows AD/LDAP directory (pgnet.local) must already be synced into authentik. Windows is the CA and the LDAP source behind authentik — it is no longer VCF’s direct identity provider.

Architecture

The lab has a mixed user base, which drives every important decision below:

Local authentik users — domain pgnet.io (e.g. vcfadmin@pgnet.io). These have an email address.
AD users via LDAP — domain pgnet.local, synced into authentik. These have a upn and a distinguishedName but no email.

Because most AD users have no email, neither sub nor email works as a universal identifier. The federation keys on upn instead — a custom claim that returns the user’s UPN, falling back to email for local users. This single decision is what makes both populations log in cleanly.

Part 1 — authentik (auth.pgnet.io)

Create the OIDC provider and application in authentik before touching VCF.

OAuth2 / OpenID Provider — VCF vCenter SSO pgvcf1vc01:

Setting	Value
Client type	Confidential
Signing key	`pgca` (RS256)
Authorization flow	implicit-consent
Subject mode	based on the user’s email (`user_email`)
Include claims in id_token	enabled
Redirect URI (strict)	`https://pgvcf1vc01.pgnet.io/federation/t/CUSTOMER/auth/response/oauth2`

vCenter generates the redirect URI — CUSTOMER is the vSphere SSO tenant name. Copy it from the VCF wizard (Part 2) and paste it back here as a strict redirect.

Application — slug vcf-vsphere-pgvcf1vc01. This yields the OIDC discovery (well-known) endpoint used by VCF:

https://auth.pgnet.io/application/o/vcf-vsphere-pgvcf1vc01/.well-known/openid-configuration

Scope mappings on the provider: openid, email, profile, groups, plus a custom upn mapping. Name it VCF UPN claim and set its scope name to profile so it rides the profile scope vCenter already requests:

return {"upn": (user.attributes.get("upn") or user.email or (user.username + "@pgnet.local"))}

AD users resolve to user@pgnet.local; local users resolve to their @pgnet.io email. This is the value VCF will treat as the unique identifier.

Role-based groups in authentik

Create one authentik group per VCF role. Each group carries its intended role in attributes.vcf_role. Group names must be unique per vCenter domain (see Gotchas).

authentik group	VCF role
vcf-admin	Administrator across VCF (vCenter Administrator)
vcf-operator / vcf-readonly	Day-2 operator / read-only auditor
vsphere-admin / vsphere-readonly	vCenter Administrator / Read-only
nsx-admin / nsx-audit	NSX Enterprise Admin / Auditor
vcfops-admin / vcfops-readonly	VCF Operations Admin / Read-only
vcfa-admin	VCF Automation Org/Provider Admin

For this walkthrough the only group pre-provisioned into VCF is vcf-admin (domain pgnet.io), with vcfadmin@pgnet.io as a member.

Part 2 — Configure VCF SSO

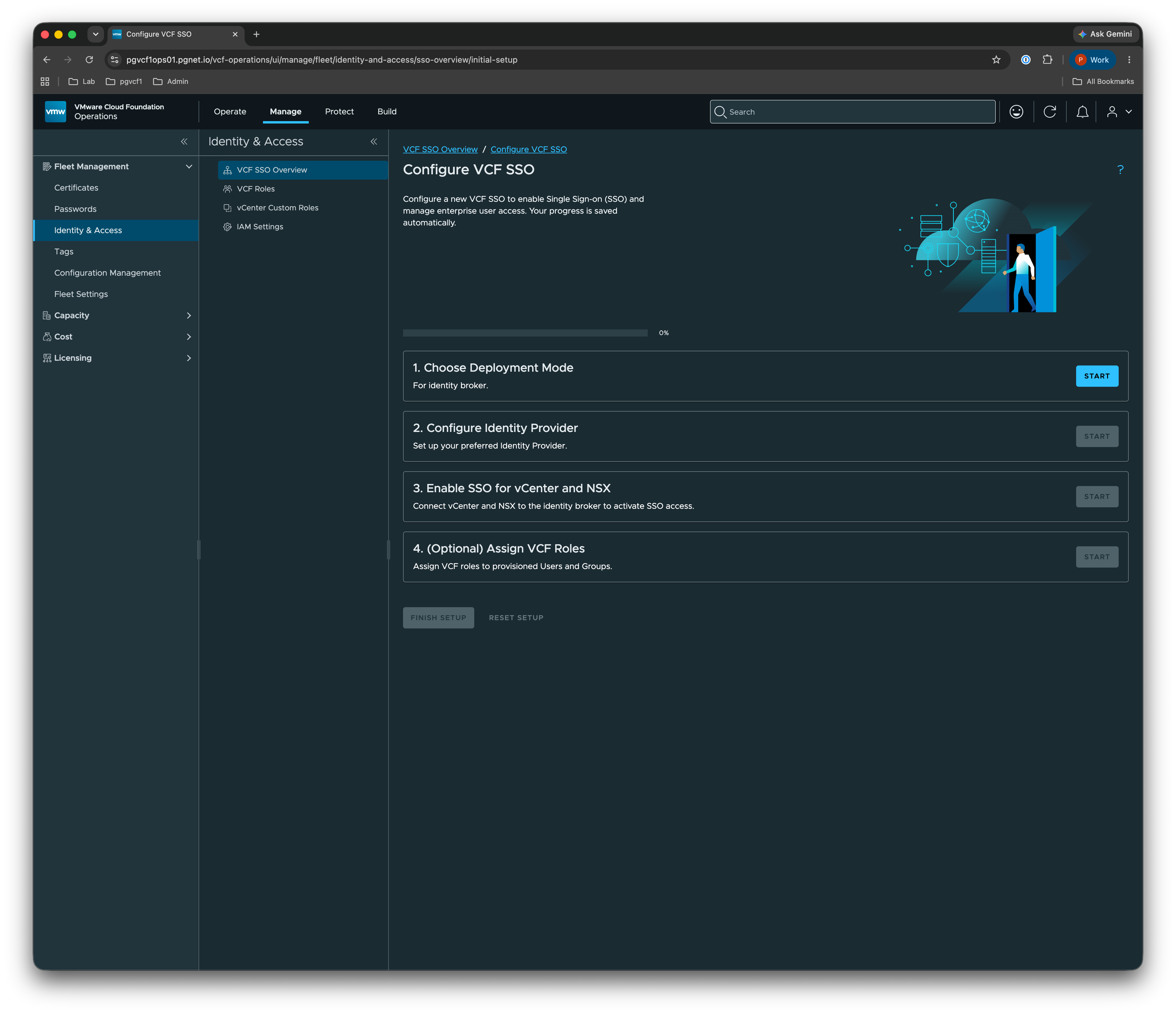

In VCF Operations → Manage → Fleet Management → Identity & Access → VCF SSO Overview, select Configure VCF SSO. The wizard has four steps and saves progress automatically.

Configure VCF SSO — four-step overview

1. Choose deployment mode

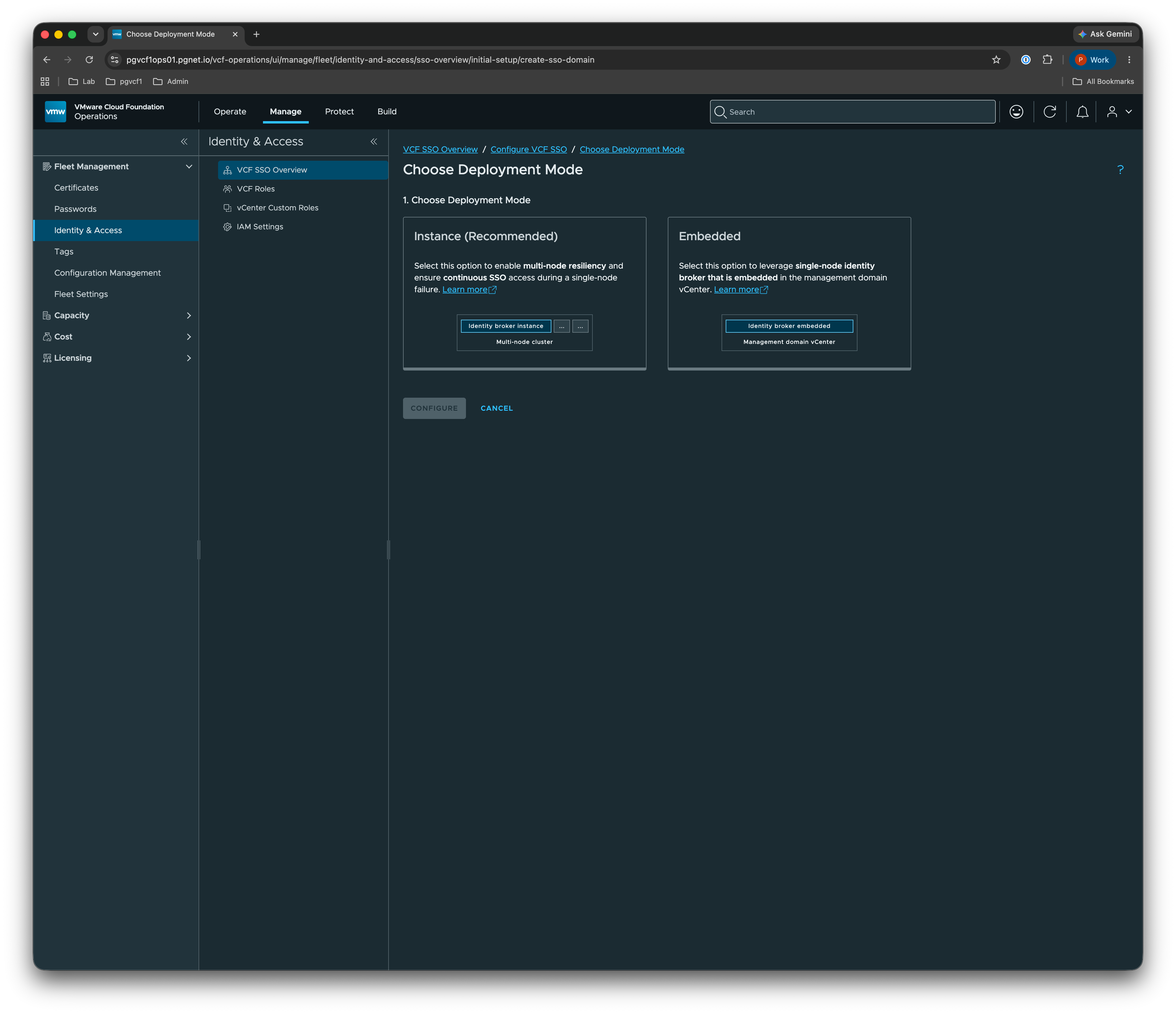

Pick Embedded to use the identity broker embedded in the management-domain vCenter (pgvcf1vc01.pgnet.io). Instance is the multi-node, highly-available alternative.

Choose Deployment Mode — Embedded

2. Configure the identity provider

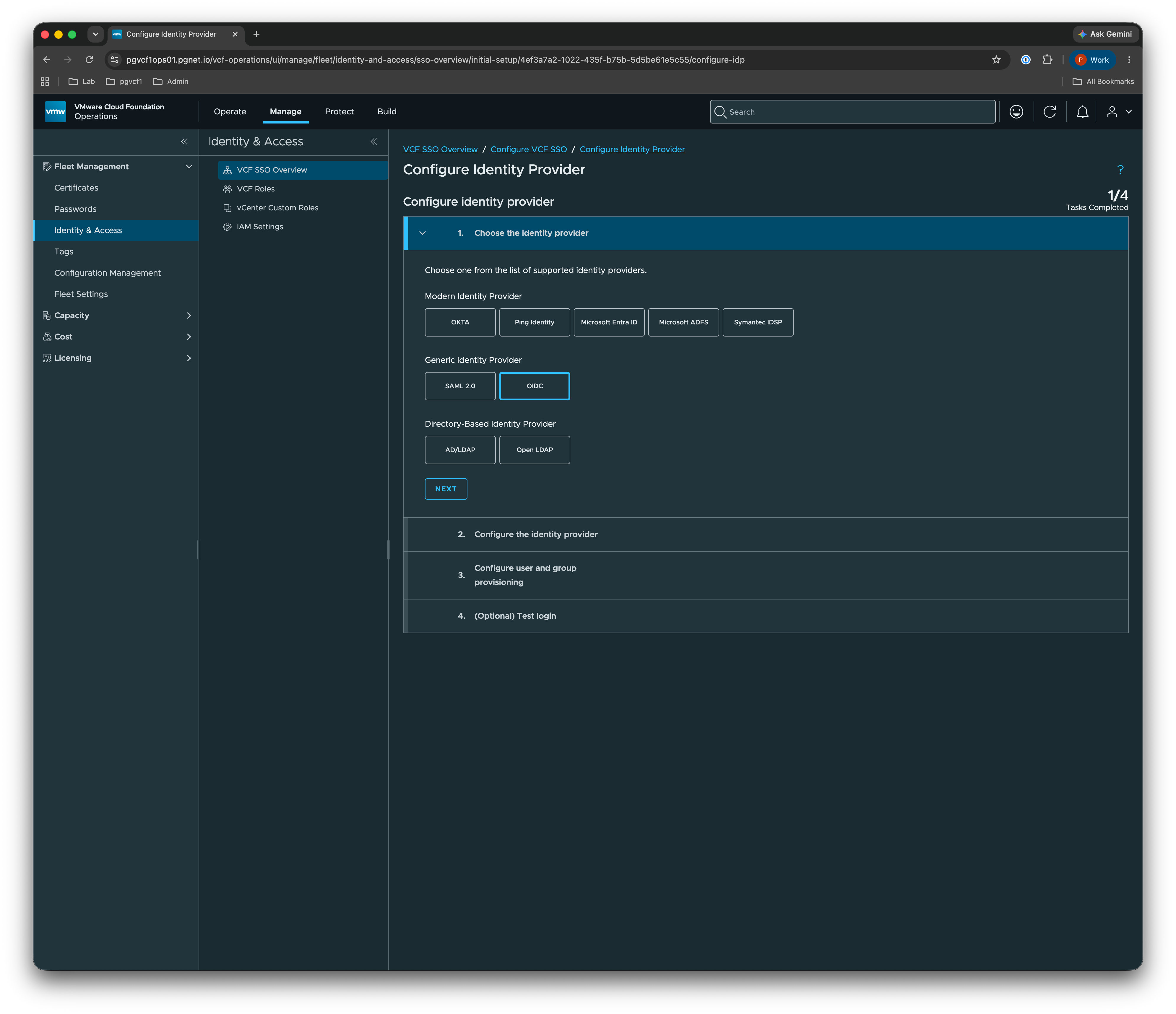

Under Generic Identity Provider, choose OIDC, then Configure.

Choose the identity provider — OIDC

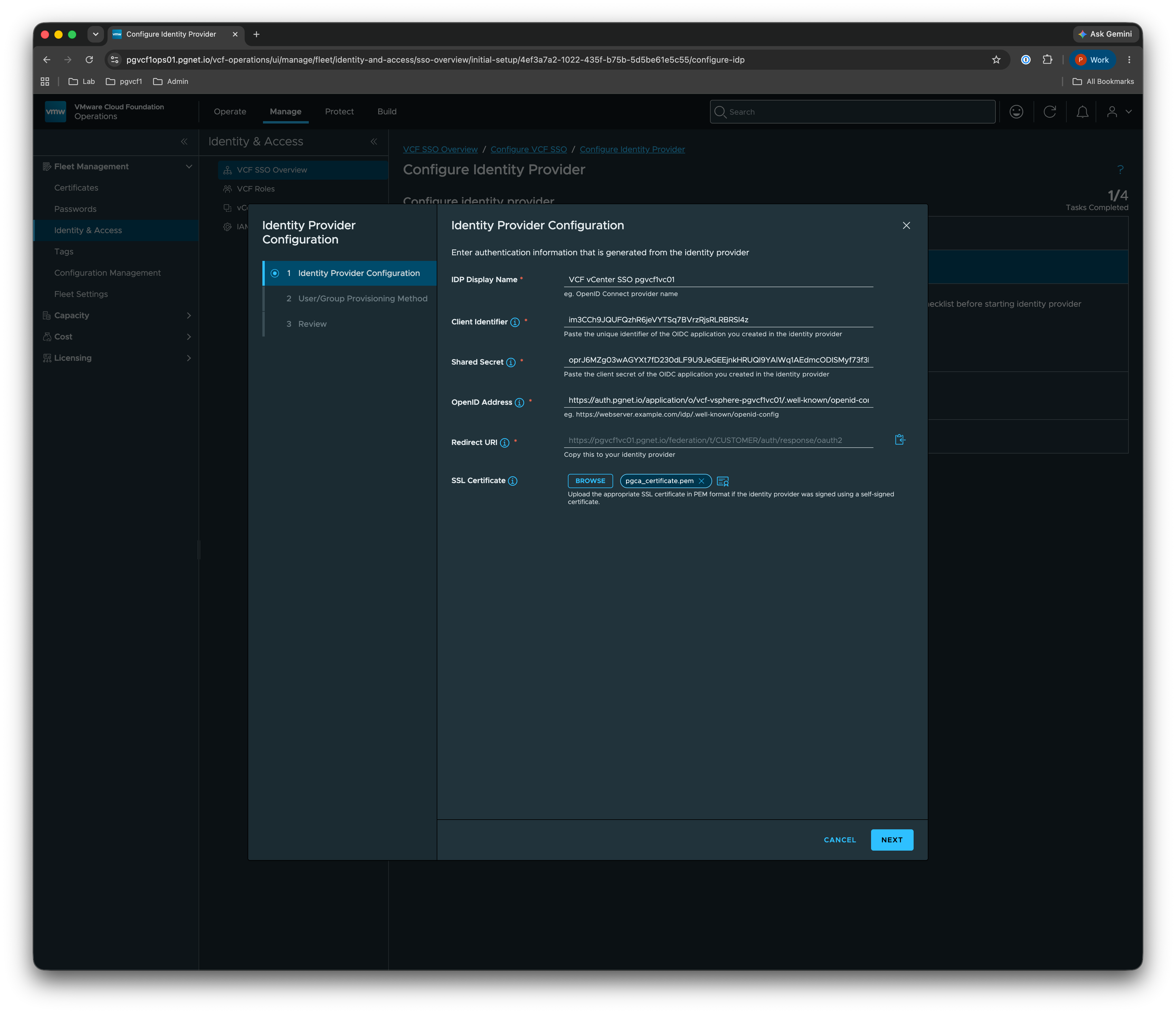

Complete the Identity Provider Configuration from the authentik values in Part 1:

Identity Provider Configuration

Field	Value
IdP Display Name	`VCF vCenter SSO pgvcf1vc01`
Client Identifier	`im3CCh9JQUFQzhR6jeVYTSq7BVrzRjsRLRBRSl4z`
Shared Secret	(client secret from the authentik provider)
OpenID Address	`https://auth.pgnet.io/application/o/vcf-vsphere-pgvcf1vc01/.well-known/openid-configuration`
Redirect URI	(generated by vCenter — copy into the authentik provider)
SSL Certificate	upload the pgnet CA chain (`pgca`) so vCenter trusts `auth.pgnet.io`

Requested scopes must be openid profile email groups. If profile/groups are not requested, the upn and groups claims never arrive.

3. User/Group provisioning method

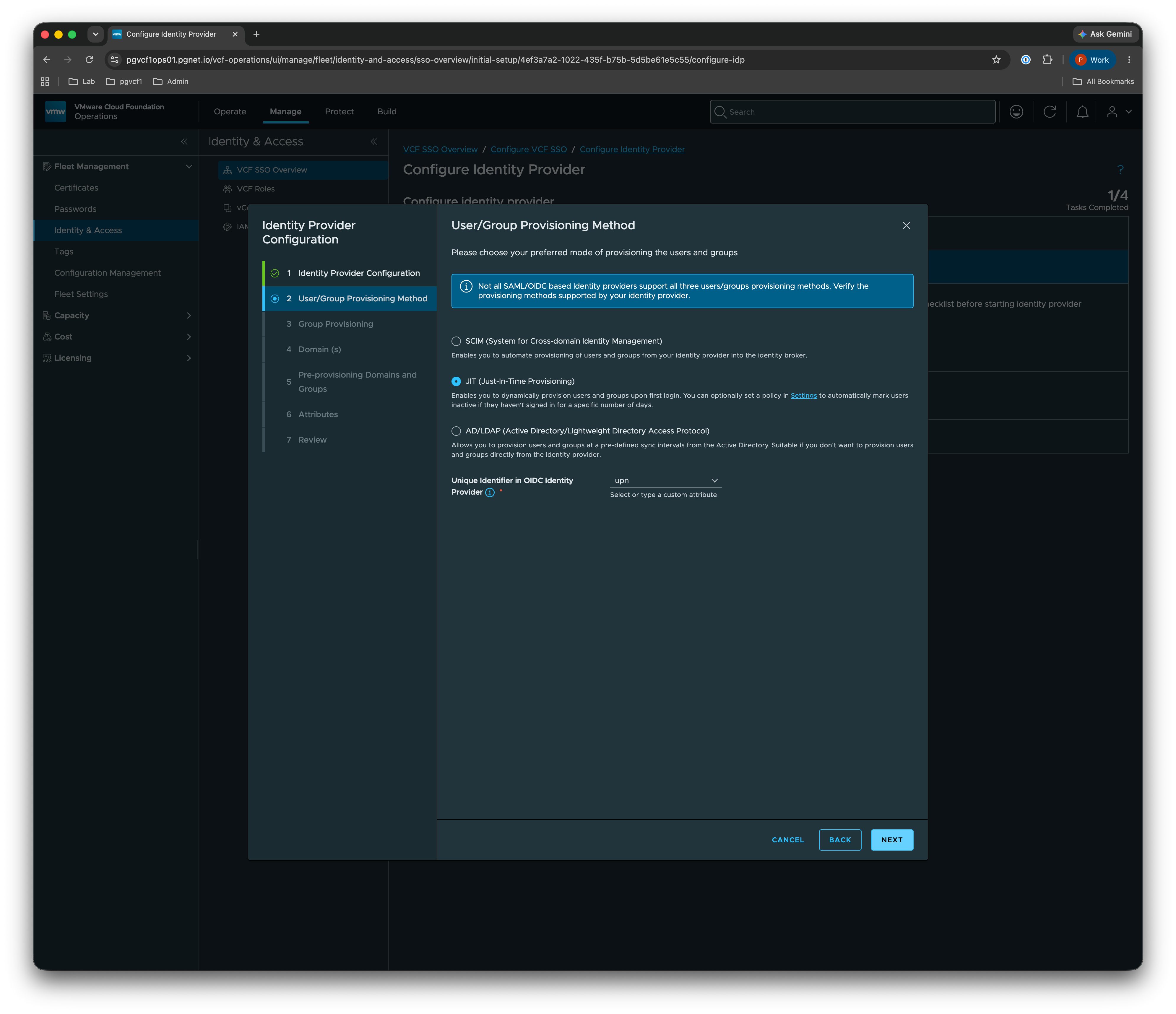

Choose JIT (Just-In-Time Provisioning) so users are created on first login, and set the Unique Identifier in OIDC Identity Provider to upn.

User/Group Provisioning Method — JIT, unique identifier upn

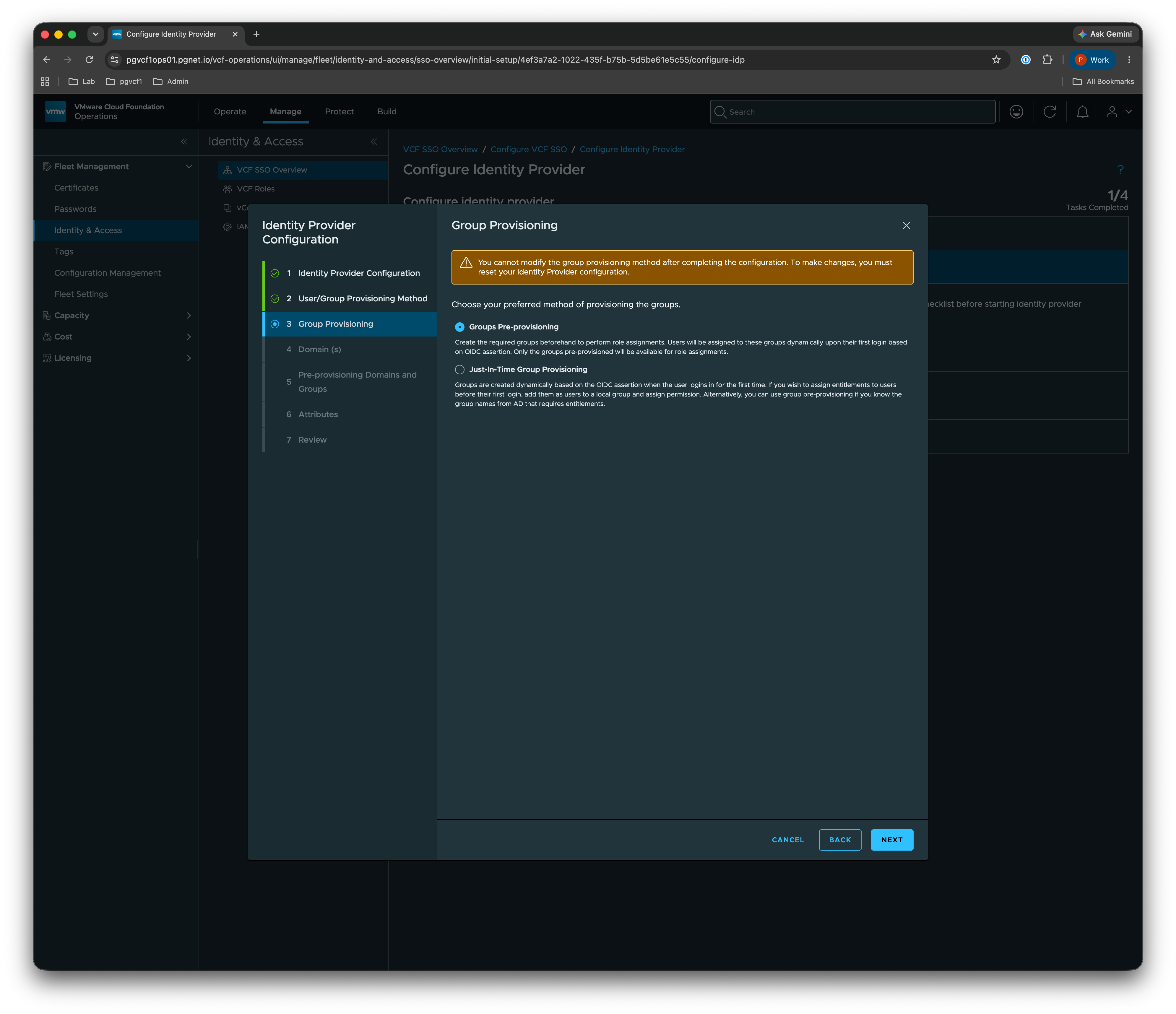

Then choose Groups Pre-provisioning — only groups you pre-provision here become available for role assignment.

Group Provisioning — Groups Pre-provisioning

4. Domains and pre-provisioned groups

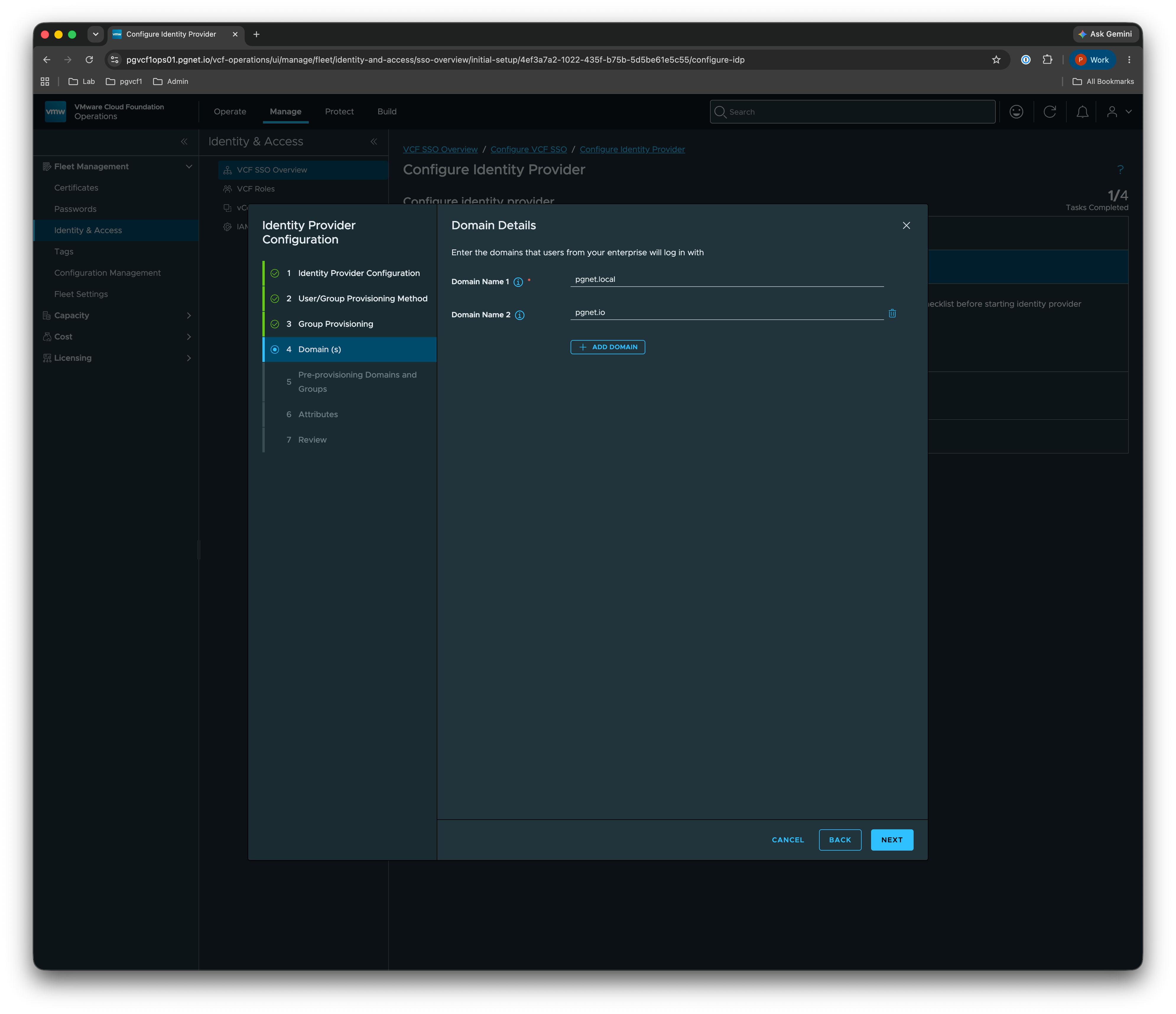

Add both login domains: pgnet.local (AD) and pgnet.io (local authentik).

Domain Details — pgnet.local and pgnet.io

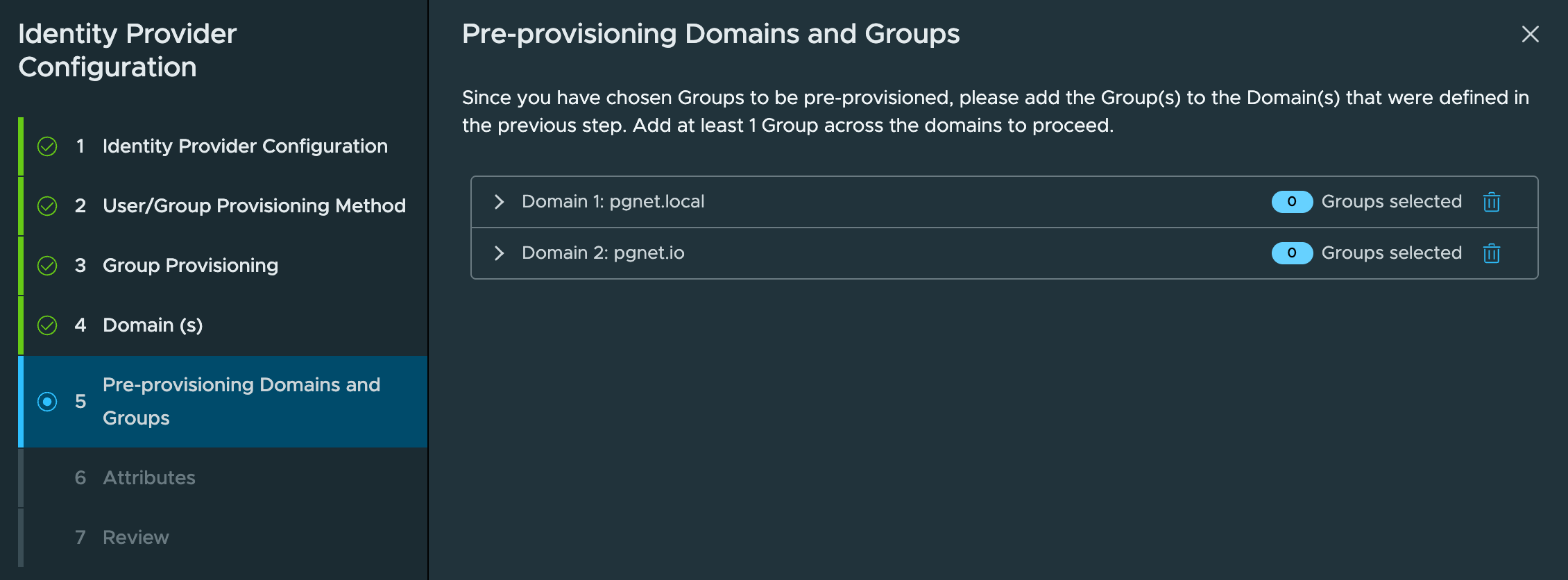

Pre-provision at least one group across the domains. Here vcf-admin is added under pgnet.io. Group attribute values are case-sensitive and a given group name must live in one domain only.

Pre-provisioning Domains and Groups

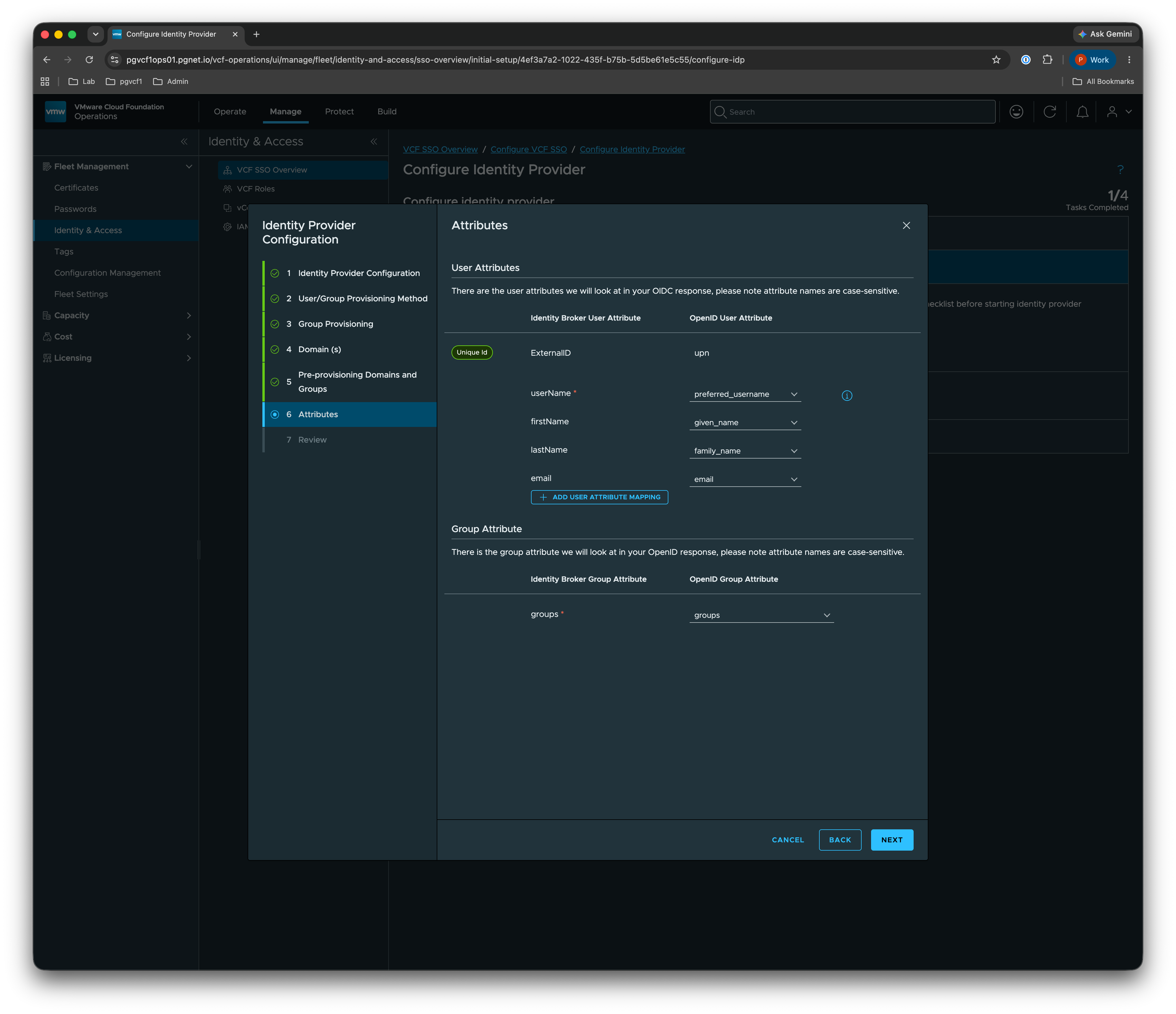

5. Attributes

Map the OIDC claims to identity-broker attributes. Attribute names are case-sensitive.

Attribute mapping

Identity Broker attribute	OpenID claim
Unique Id — ExternalID	`upn`
userName	`preferred_username`
firstName	`given_name`
lastName	`family_name` (may be blank)
email	`email`
Group attribute — groups	`groups`

⚠️ Mixed AD + local users. The screenshot maps userName → preferred_username, which works for local pgnet.io users. For AD/LDAP users this breaks JIT with “Jit user domain is required” — userName must be domain-qualified, so map userName → upn if you are onboarding AD users. See Gotchas.

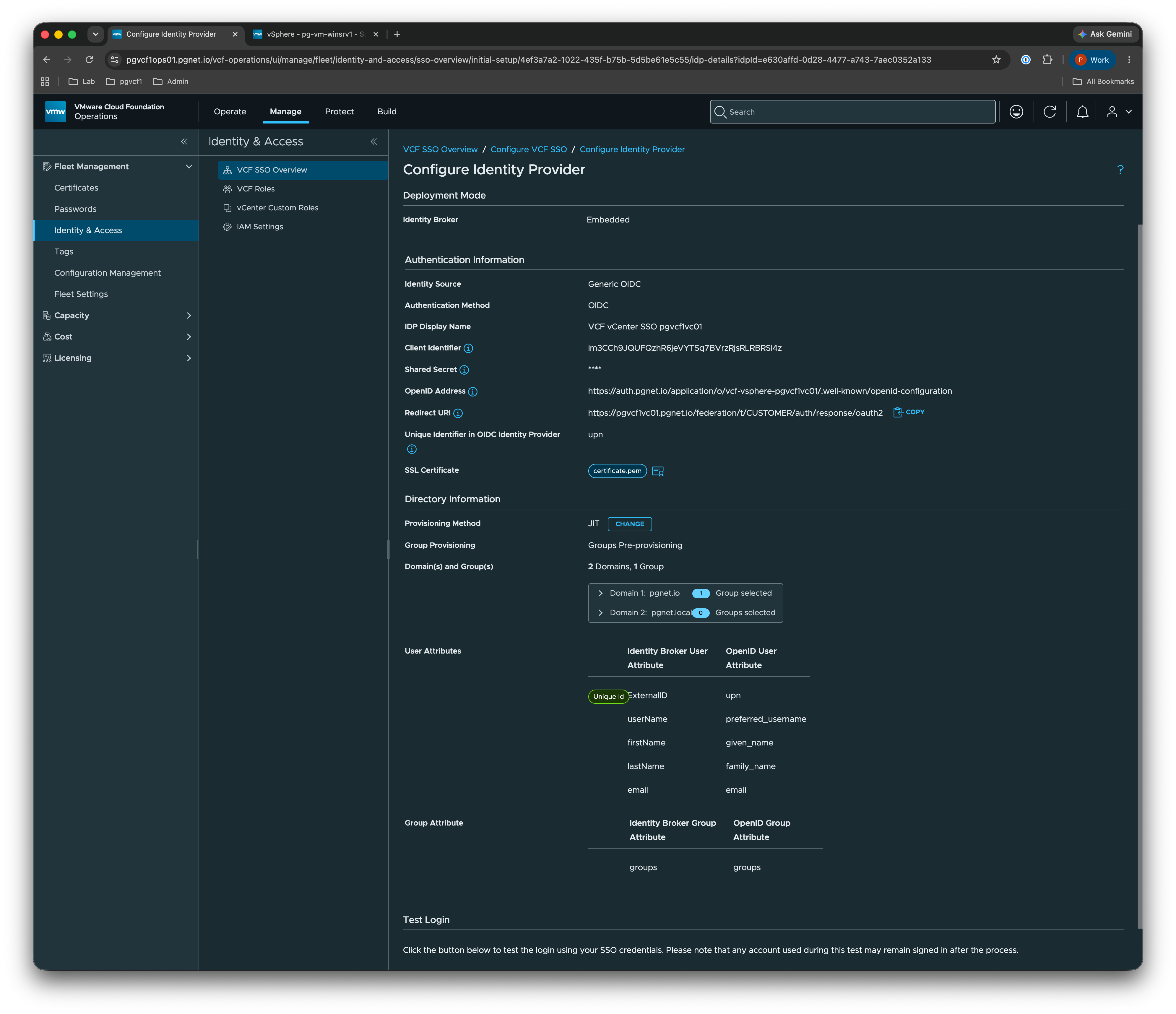

6. Review

Confirm the summary — deployment mode, authentication information, directory information (JIT, Groups Pre-provisioning, domains, attributes) — and finish.

Review the identity provider configuration

User and group provisioning is then marked complete automatically because of the OIDC choice.

Part 3 — Assign VCF roles

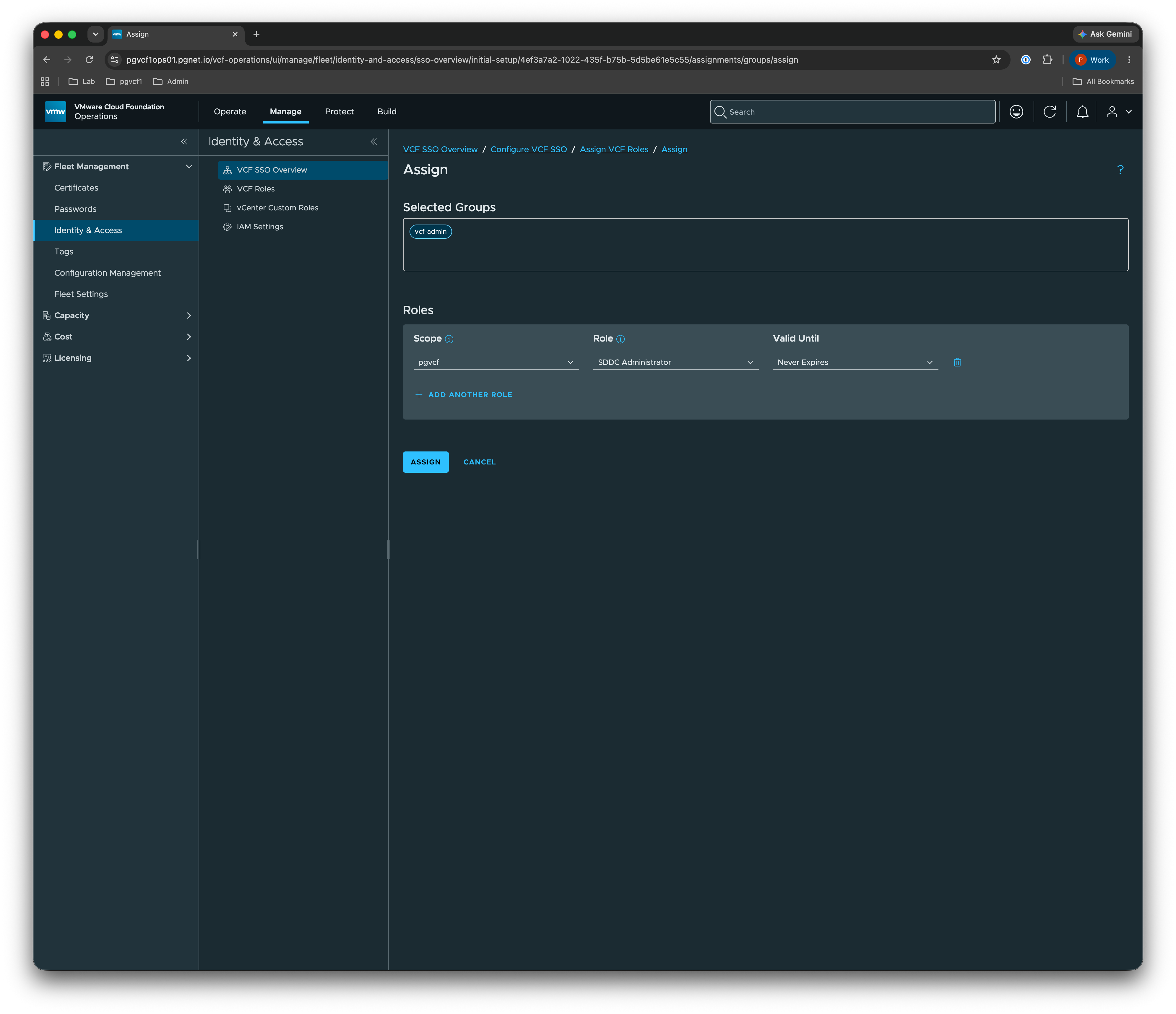

With the IdP configured, assign the pre-provisioned group to a VCF role. Select vcf-admin, scope pgvcf1, role SDDC Administrator, valid Never Expires.

Assign VCF role — vcf-admin → SDDC Administrator

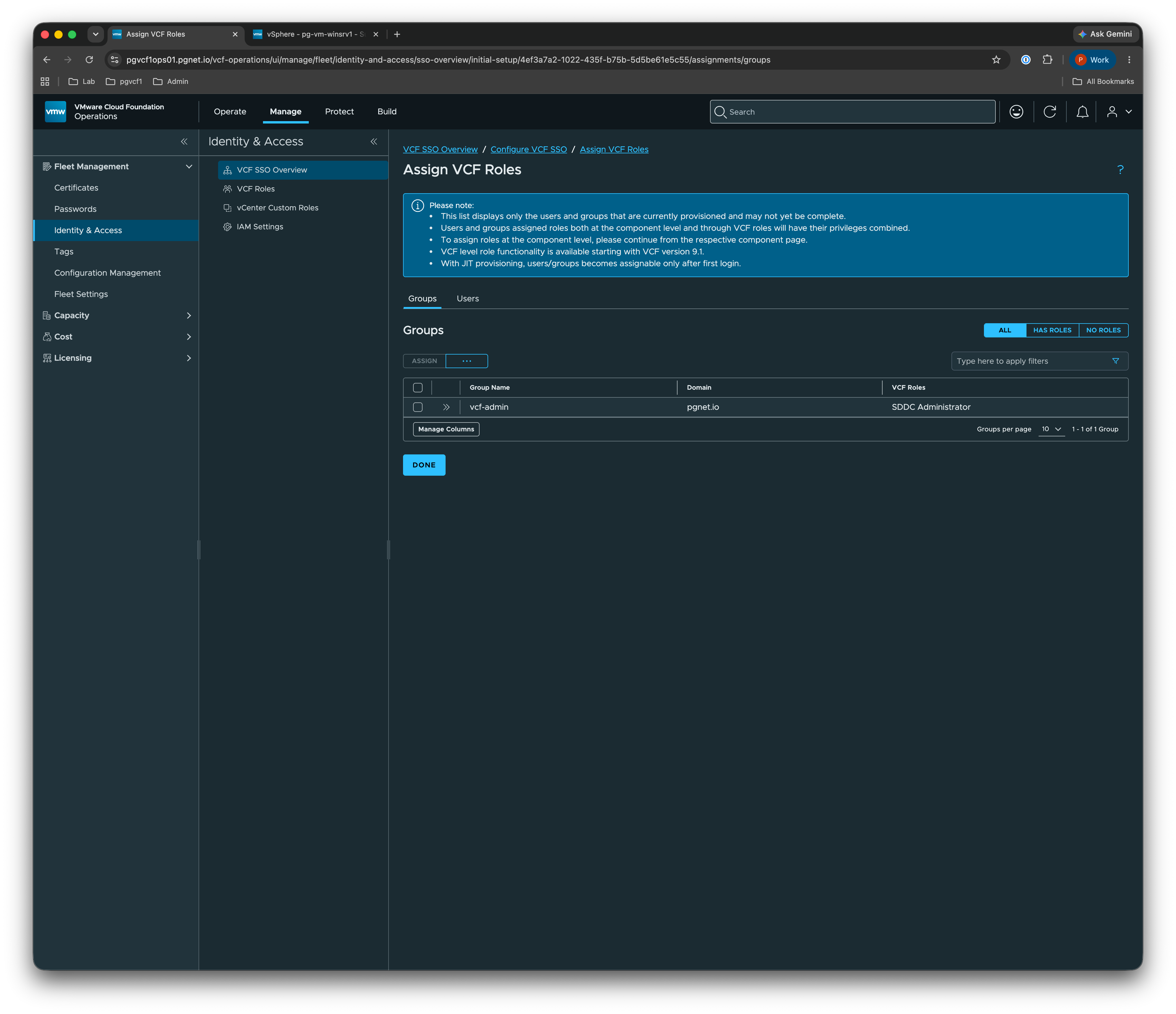

The group appears in the Assign VCF Roles list as vcf-admin / pgnet.io / SDDC Administrator. VCF-level roles are new in 9.1; component-level roles are still assigned per component (Part 4).

Assign VCF Roles — group list

With JIT provisioning, a user becomes assignable only after their first login.

Part 4 — Component role assignments

VCF-level roles cover the fleet, but each component still needs the SSO group mapped to a local role. This mirrors the 9.0.2 workflow, now using the OIDC group vcf-admin@pgnet.io.

vCenter

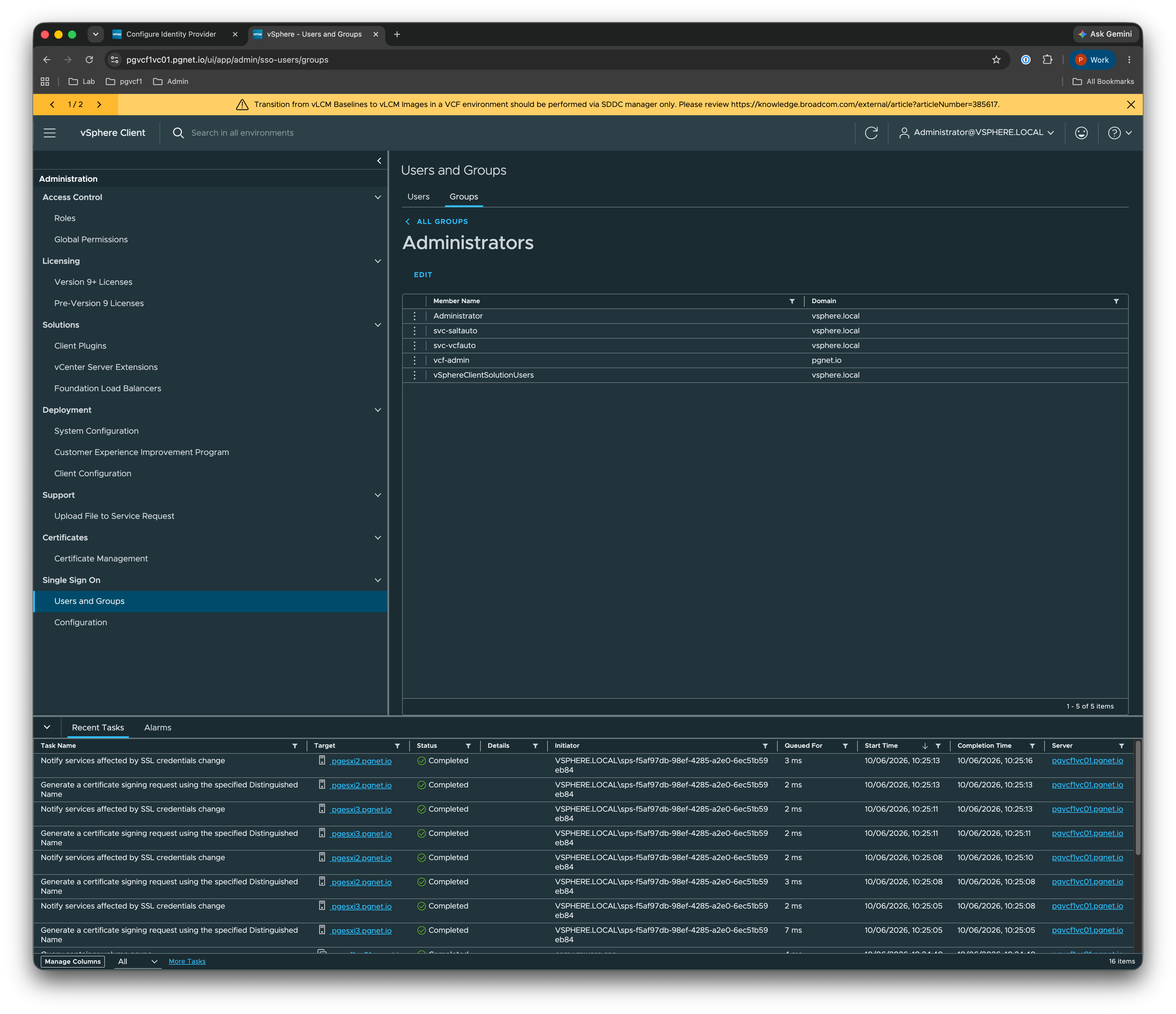

Log in to the vSphere Client → Administration → Single Sign On → Users and Groups → Administrators, and confirm/add vcf-admin@pgnet.io as a member (or add it under Global Permissions with the Administrator role, propagating).

vCenter Administrators group includes vcf-admin@pgnet.io

VCF Operations

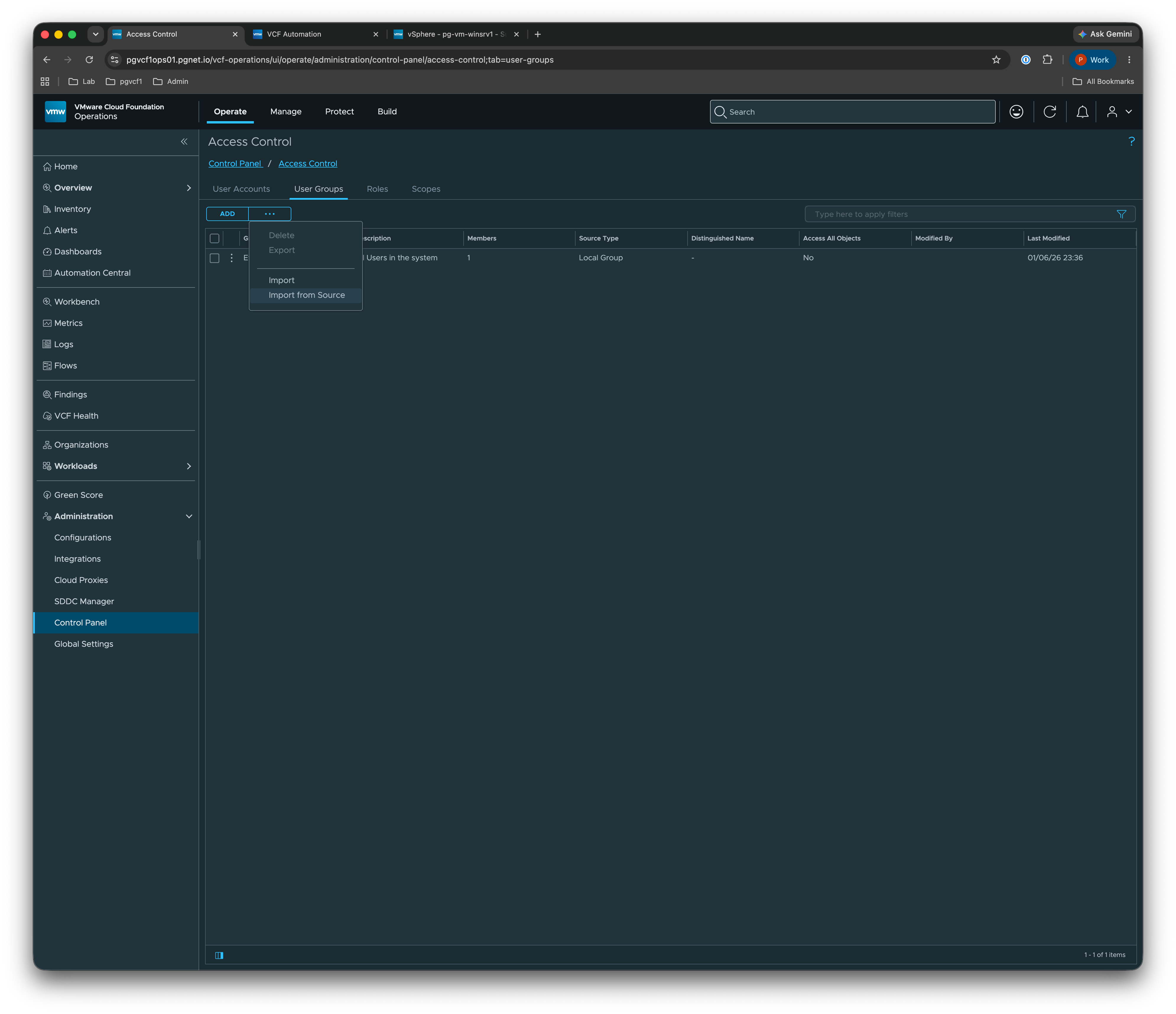

In VCF Operations → Administration → Control Panel → Access Control → User Groups, select ... → Import from Source.

Import from Source

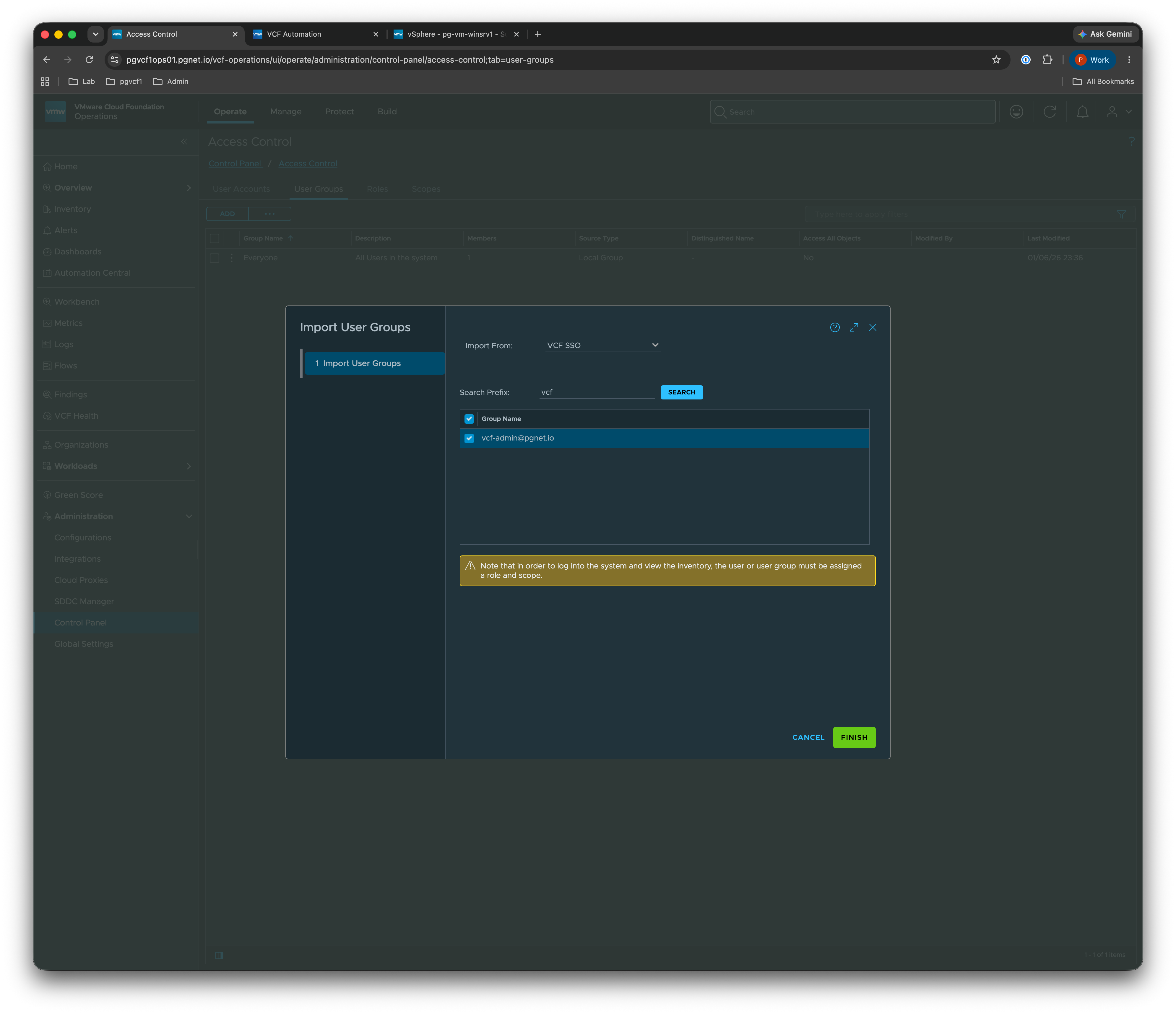

Import from VCF SSO, search the prefix vcf, and select vcf-admin@pgnet.io → Finish.

Import User Groups — select vcf-admin@pgnet.io

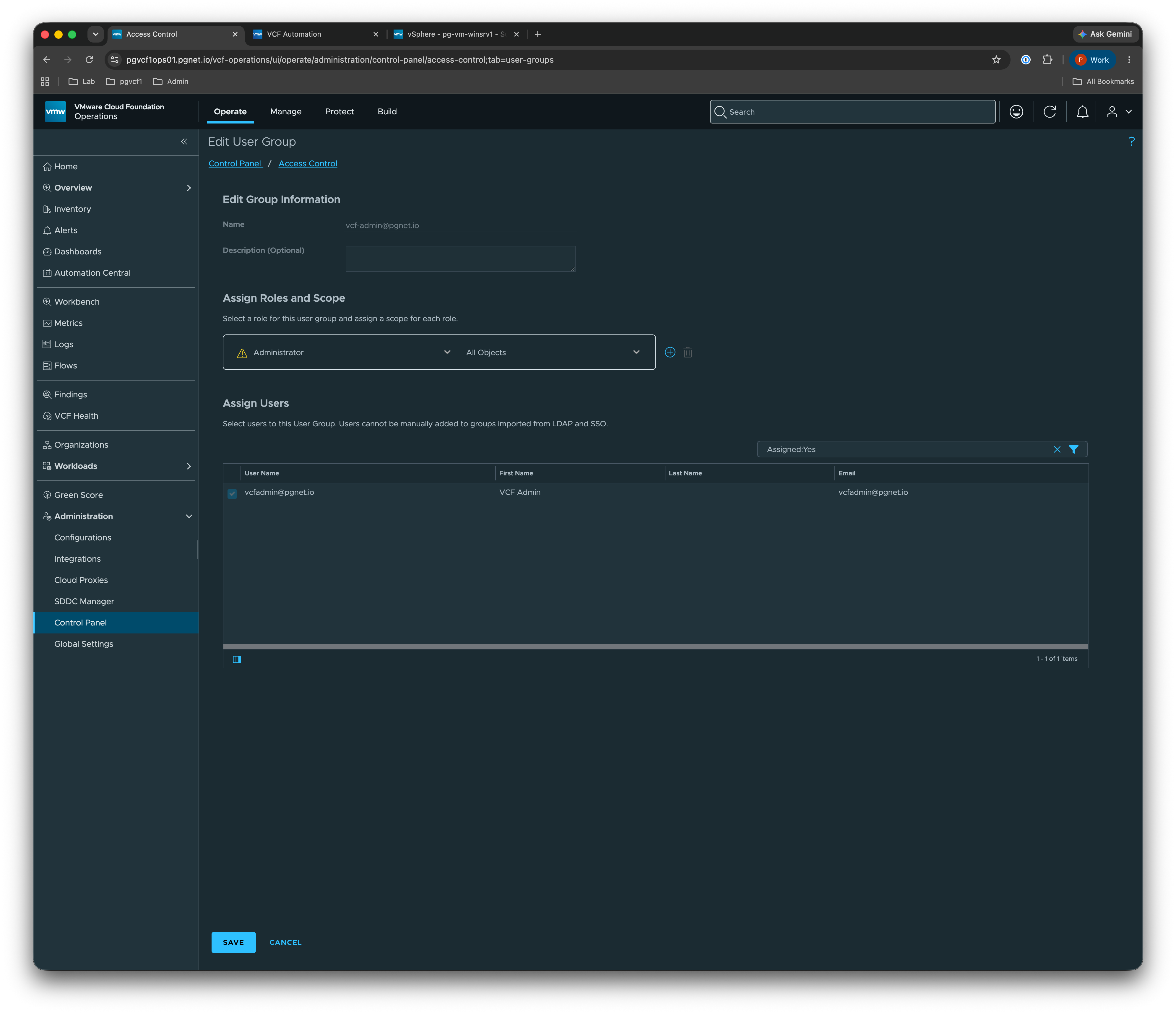

Edit the imported group → Assign Roles and Scope → role Administrator, scope All Objects → Save.

Assign Administrator / All Objects

NSX Manager

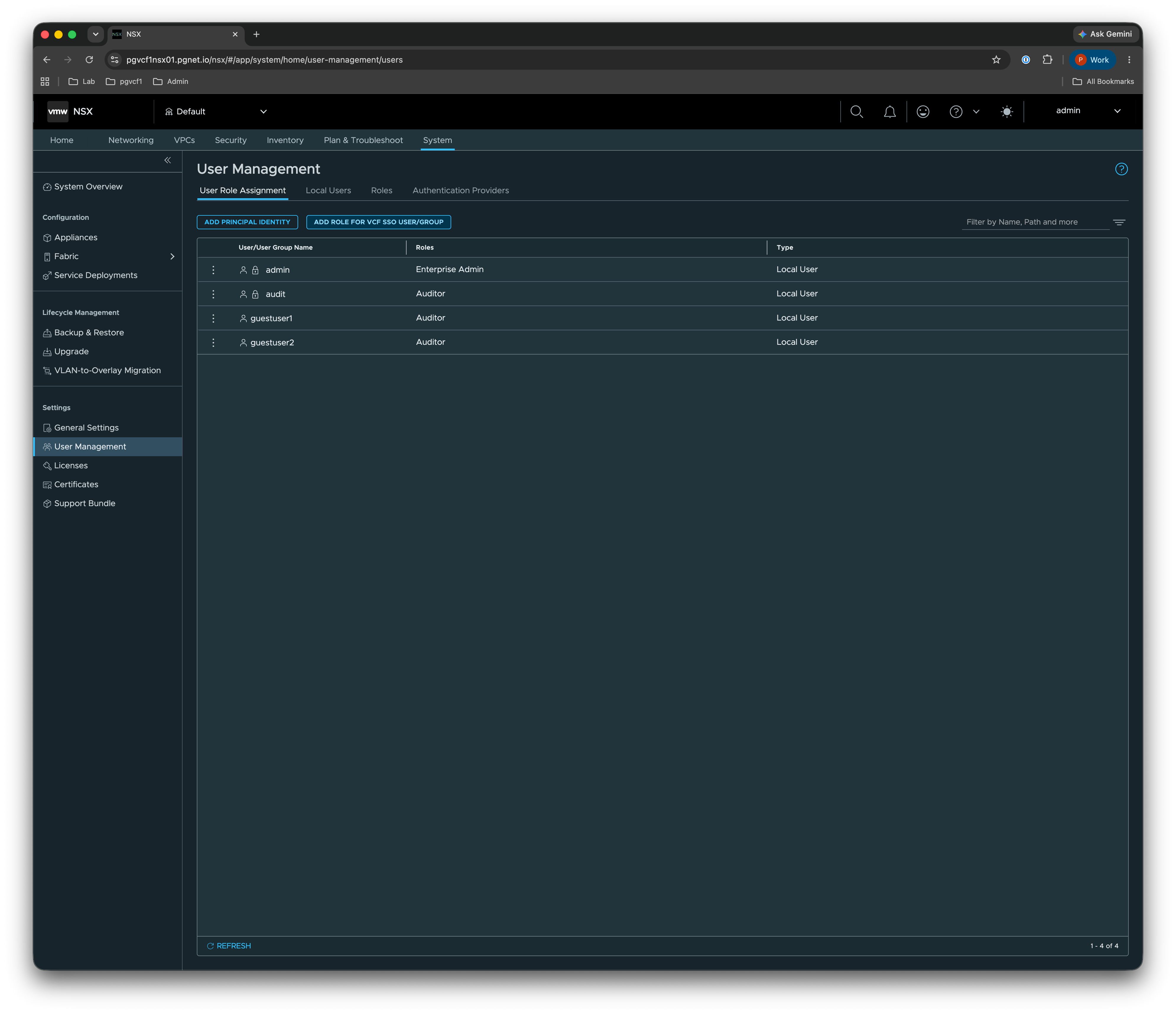

Log in to NSX (pgvcf1nsx01.pgnet.io) → System → User Management → User Role Assignment → ADD ROLE FOR VCF SSO USER/GROUP.

NSX — Add Role for VCF SSO User/Group

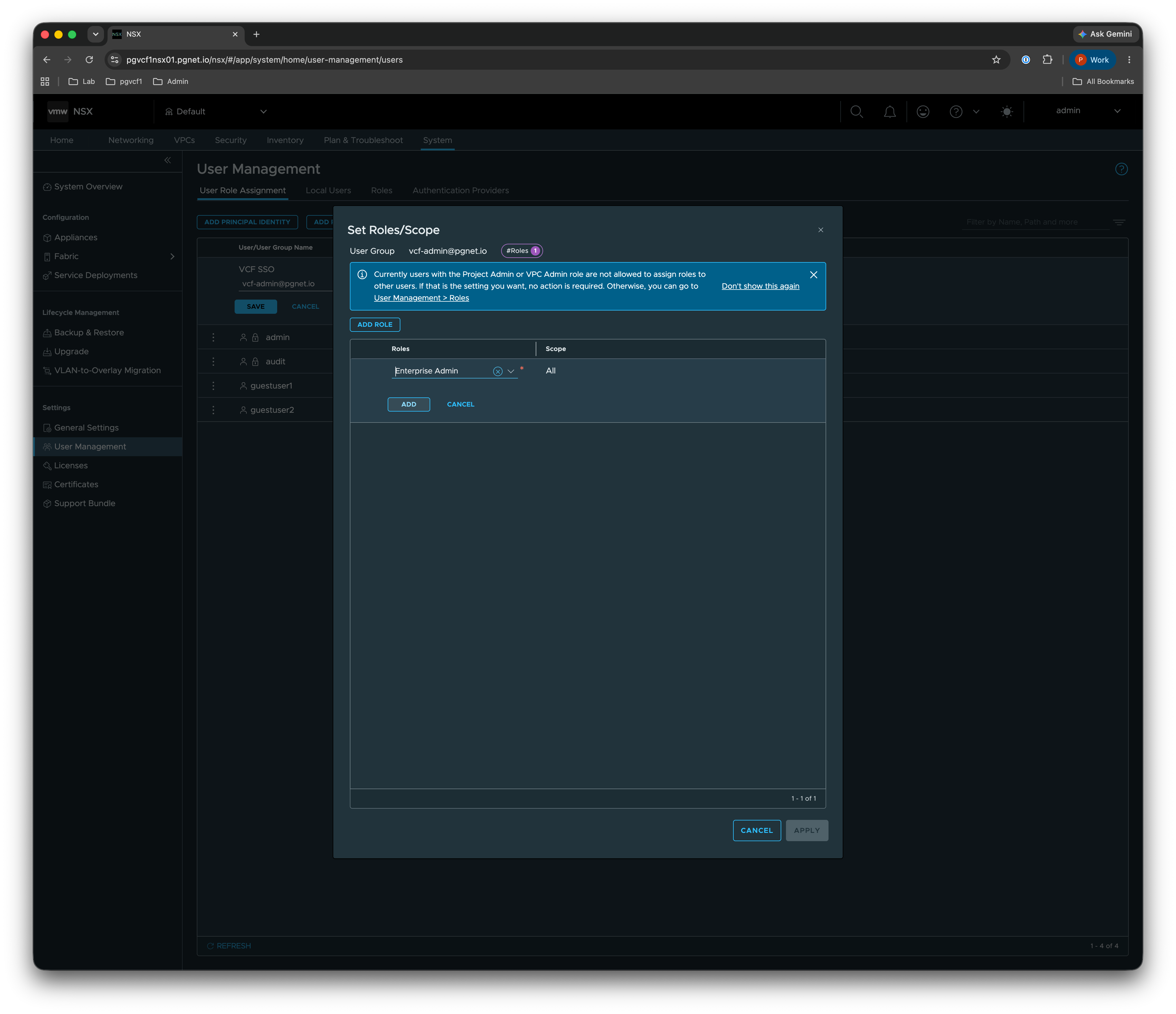

Set the user group to vcf-admin@pgnet.io, role Enterprise Admin, scope All → Apply.

NSX — Set Roles/Scope: Enterprise Admin

Gotchas

The five things that cost time, distilled from lab experience:

Back-channel CA trust. vCenter calls auth.pgnet.io server-side (/token, /jwks) using the internal pgnet-WINSRV1-CA. Import the pgnet root + issuing CA into vCenter’s trusted roots (Administration → Certificate Management). Symptom if missing: a generic “Identity Broker encountered an issue.”
Use upn, not sub/email. AD/LDAP users have no email, so any email-based identifier breaks them. The custom upn claim (UPN-or-email) covers everyone.
userName must be domain-qualified (map it to upn). A bare preferred_username for AD users yields “Jit user domain is required.”
Group name unique per domain. The bare groups claim cannot have the same name pre-provisioned in two domains — that returns “IncorrectResultSizeDataAccessException: 2 results were returned” (HTTP 500). Keep each group in one domain; give AD and local admin groups distinct names.
Scopes. vCenter must request openid profile email groups, or the upn and groups claims never arrive.

Diagnosing: the authentik event log shows the front-channel authorize_application event and the scopes actually requested. The real vCenter error is in the identity-broker audit log on the VCSA (/var/log/vmware/identity-broker/*.log — look for auditID="login_error" and the reason).
